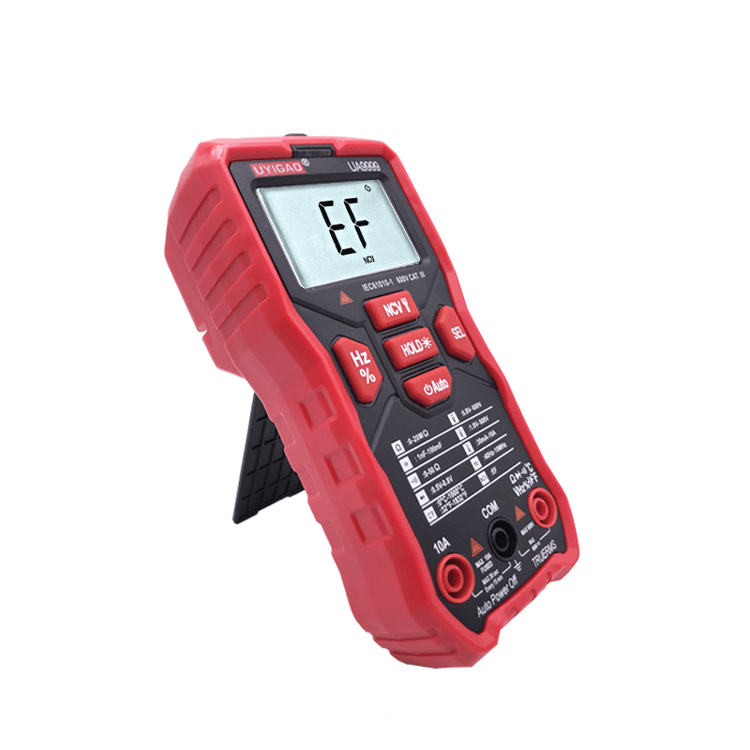

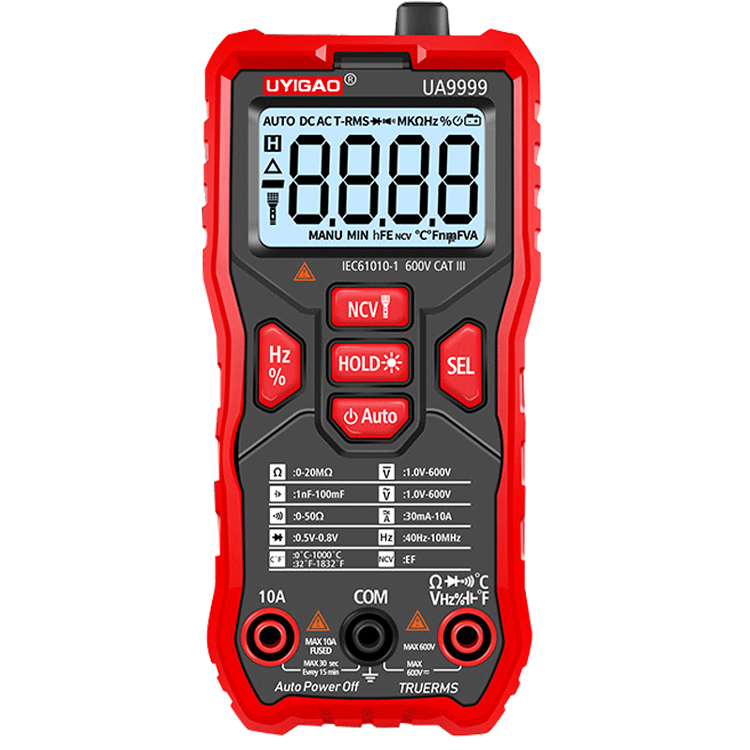

5999 button design Intelligent True RMS Professional Multimeters Diode Capacitor NCV Testers Multi Meter Auto digital multimeter
True-RMS Multi meter 6000 COUNTS High Precision Digital multimeter NCV Smart Multimetro Auto Ranging AC/DC Flashlight Multitester
Key Specifications/Special Features:
General characteristics:
1. Display: LCD
2. Maximum display: 5999, 3 5/6 automatic polarity display and unit display
3. Measurement methods: double integral A/D conversion
4. Sampling rate: 3 times /second
5. Over range display: OL
6. Low voltage display: display low voltage symbols
7. Working environment: 0 to 40°C Relative humidity: <80%
8. Storage environment: -10 to 50°C Relative humidity: <80%
9. Battery: 4.5V (3*1.5V AAA batteries) not included here.
10. Volume size: 140 x 68 x 49mm
11. Weight: about 266g (including battery)
Basic function | Range | Basic accuracy |
DC voltage | 6/60/600V | ± (0.5%+5)6/60V ± (0.8%+5): 500V |
AC voltage | 6/60/600V | ± (0.8%+3d): 6/60V ± (1.0%+10d): 500V |
DC current | 600uA/6000uA/60mA/ 600mA/6A/10A | ± (1.5%+10d): 600uA/6000uA/60mA/600mA ± (2.5%+10d): 6A/10A |
AC current | 600uA/6000uA/60mA/ 600mA/6A/10A | ± (1.5%+10d): 600uA/6000uA/60mA/600mA ± (2.0%+10d): 6A/10A |
Resistance | 600Ω/6/60/600KΩ /6/600MΩ | ± (0.8%+3d): 600Ω/ 6/60/600kΩ ± (1.2%+3d): 6MΩ/60MΩ |
Capacitance | 9.999nF/99.99nF/999.9nF/ 9.999uF/99.99uF | ± (4.0%+3d): 9.999nF/99.99nF/999.9nF/ 9.999uF/99.99uF |
Frequency | 9.999/99.99/999.9Hz 9.999/99.99/999.9kHz 9.999MHz | ± (1.0%+3d) |
Special function | ||

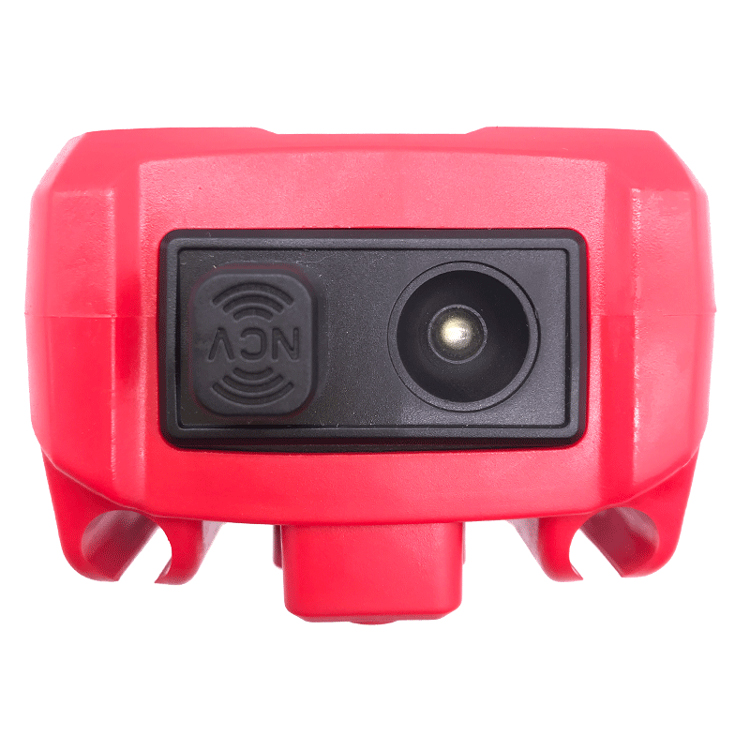

NCV test | V | |
Low battery display | V | |
Data Hold/TRMS/NCV | V | |
Automatic turn-0ff | V | |
Function protection | V | |
Automatic resettable fuse | V | |
Backlight | V | |
Self recovered Safety | V | |
Operation mode | Auto range | |
Maximum display | 5999 | |
Weight | 266g, 140 x 68 x 49mm | |
Power | 9V battery (6F22) | NOT including by air freight. |

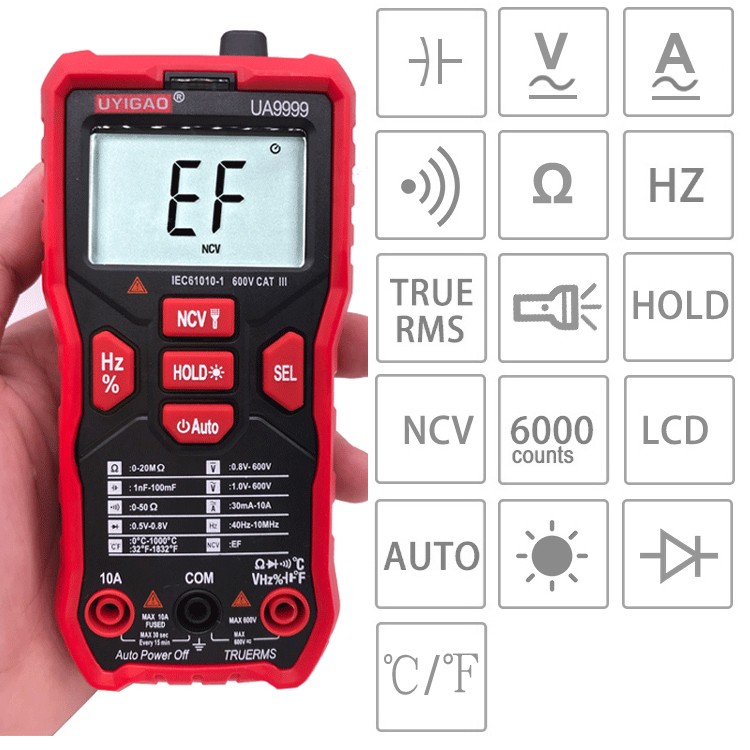

5999 digital multimeter for measuring capacitance, resistance, temperature, TRMS, NCV, torch, 10A AC/DC current, 600V AC/DC voltage (ONE-KEY, AUTO, Smart)
