Mini smart multimeter

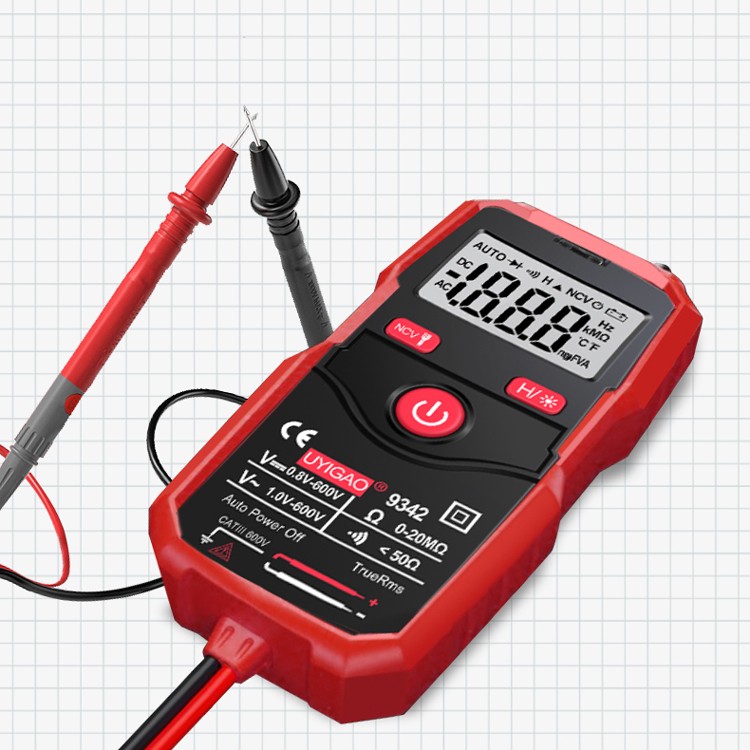

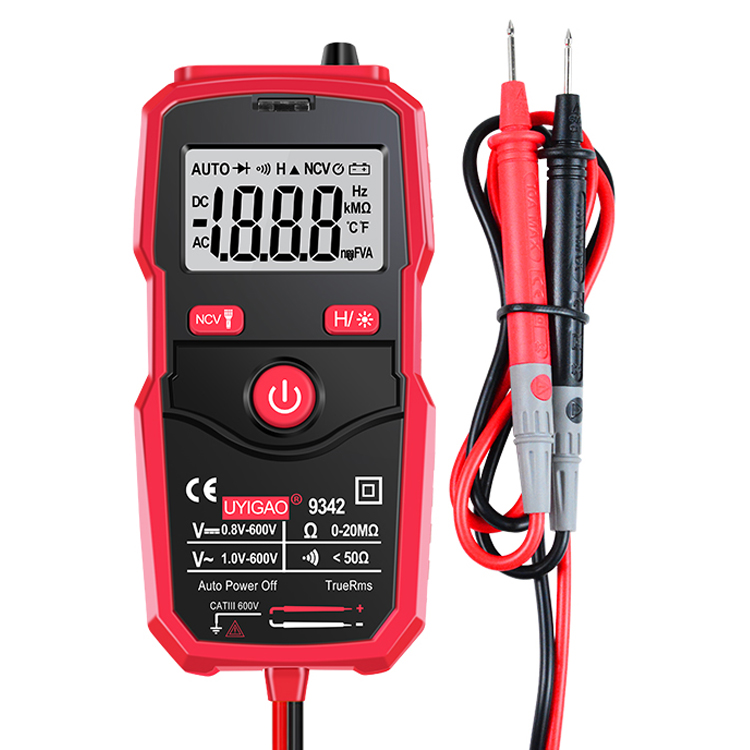

New design UA9342 Digital Multimeter

New design UA9342 Digital multimeter

Products overview:

Full protection function, high voltage ignition circuit design

New shockproof, streamlined design, comfortable feel

Large screen display

Strong anti-jamming capability

Basic function	Range	Accuracy
DC voltage	600V	±(0.5%+3)
AC voltage	600V	±(1.0%+5)
Resistance	200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ	±(0.8%+3)
Capacitance	x	—
Temperature	x
Frequency	x
Special function
Diode test Triode testing	x
Logic level test Continuity buzzer		√
Low battery display		√
Data hold Auto power off		√
Function protection		√
Anti-vibration protection		√
Input impedance for DCV	10MΩ	x
Backlight		—
Sample frequency	60Hz	√
Operation	Manual range	√
Maximum display	1999	√
Size	1407023mm	√
Power	9V battery (6F22)	√
