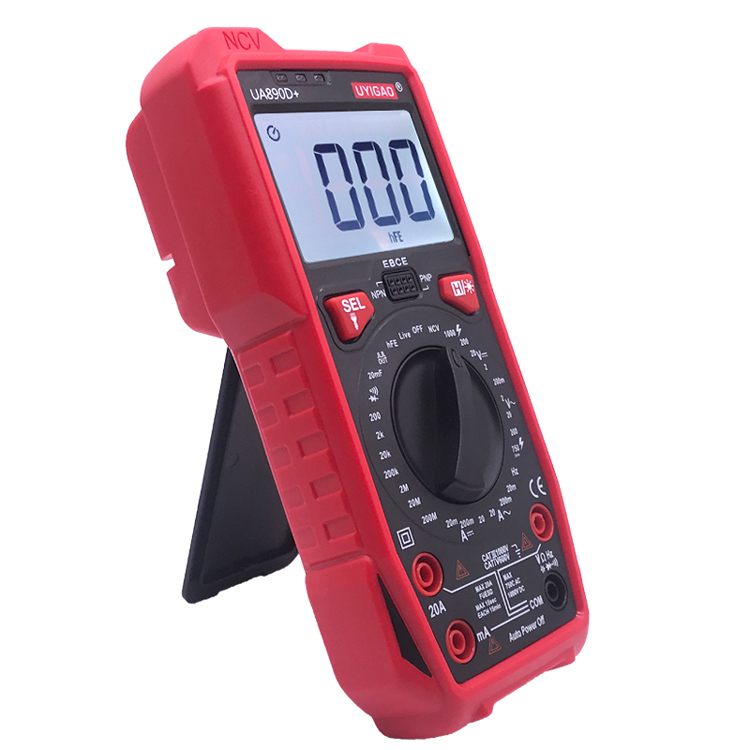

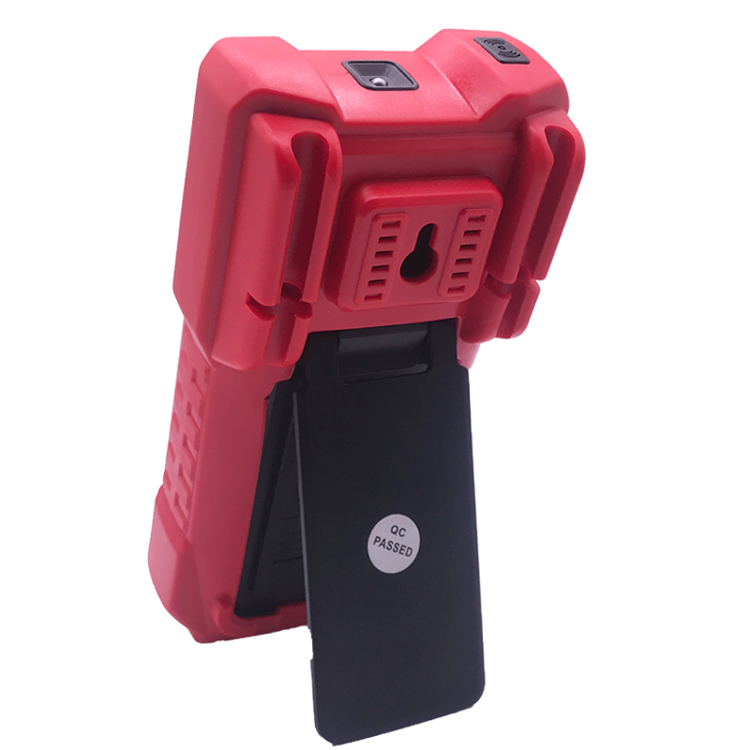

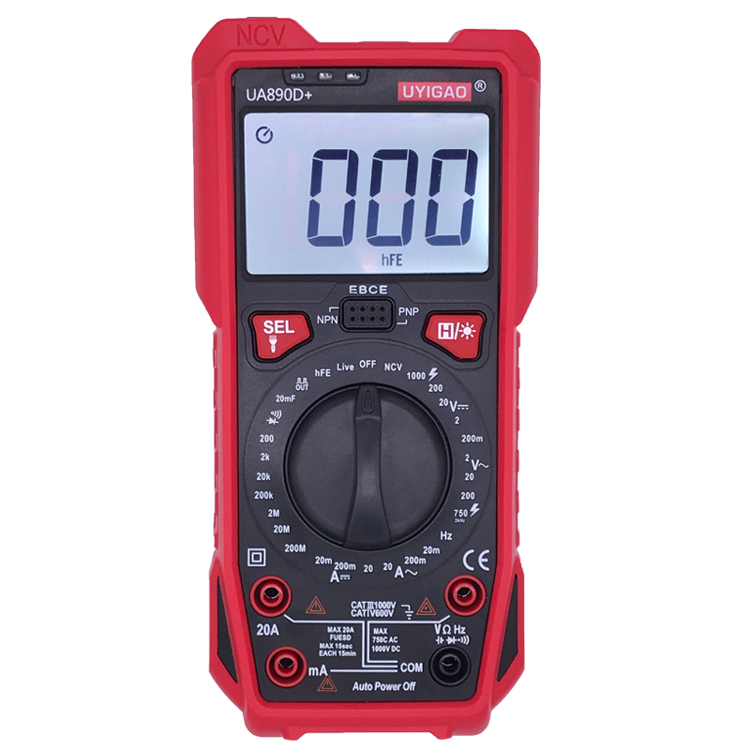

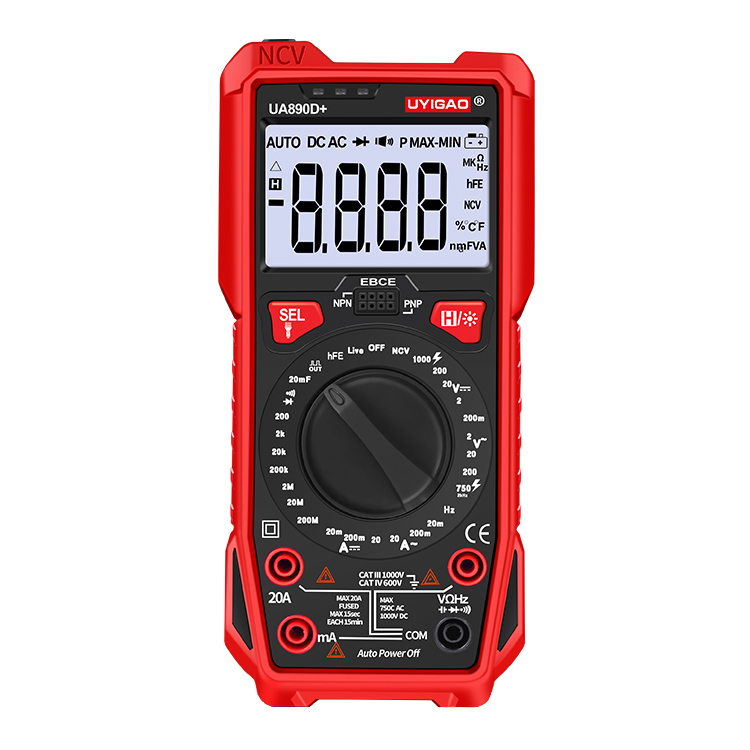

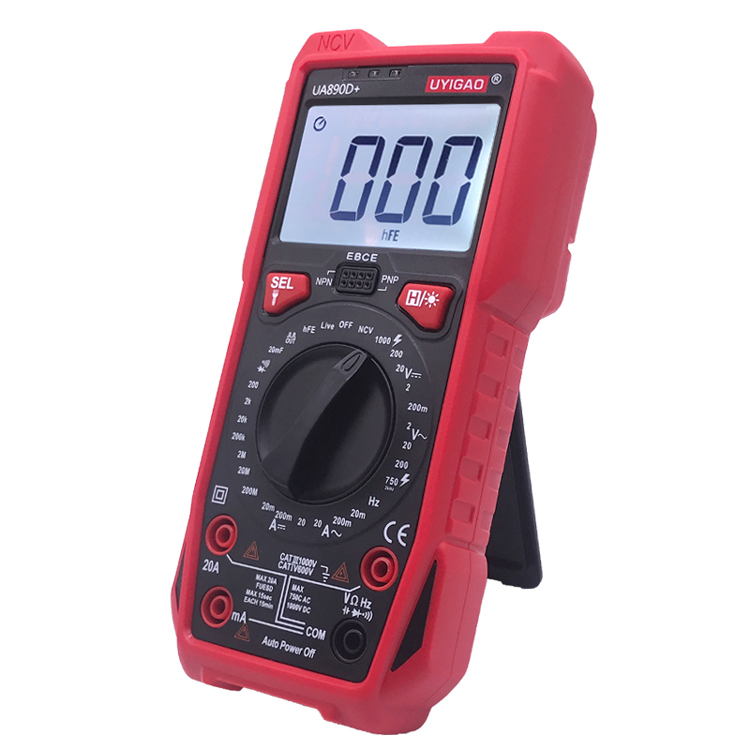

UA890D Voltmeter Ohmmeter Ammeter Capacitance DC AC Tester Digital Multimeter
UA890D Voltmeter Ohmmeter Ammeter Capacitance DC AC Tester Digital multimeter
Products overview:
Full protection function, high voltage ignition circuit design
New shockproof, streamlined design, comfortable feel
Large screen display
Strong anti-jamming capability
General characteristics:
| Basic function | Range | Accuracy |
| DC voltage AC voltage | 200mV/2V/20V/200V/1000V 200mV/2V/20V/200V/750V | ±(0.5%+3) ±(0.8%+3) |
| DC current AC current | 2mA/20mA/200mA/20A 2mA /20mA/200mA/20A | ±(0.8%+3) ±(1.0%+3) |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200 MΩ | ±(0.8%+3) |
| Capacitance | 20mF | ±(2.5%+20) |
| Temperature | x | — |
| Frequency | √ | |
| Special function | ||
| Diode test Triode testing | √ | |
| Logic level test Continuity buzzer | √ | |
| Low battery display | √ | |
| Data hold Auto power off | √ | |
| Function protection | √ | |
| Anti-vibration protection | √ | |
| Input impedance for DCV | 10MΩ | x |
| Backlight | — | |
| Sample frequency | 60Hz | √ |
| Operation | Manual range | √ |
| Maximum display | 1999 | √ |
| Display size | 63x32mm | √ |

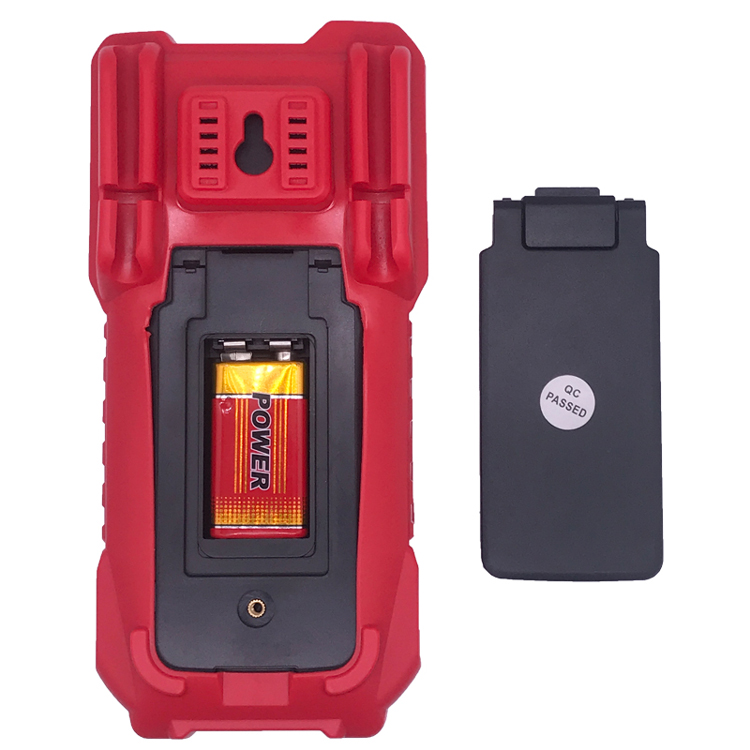

| Power | 9V battery (6F22) | √ |
-Dimension: 185*90*35mm
-Weight: approx.300g
Package List:
| 1 x | Digital Multimeter |
| 2 x | Test Leads Pens |
| 1 x | Temperature Test Cable |
| 1 x | User Manual |
